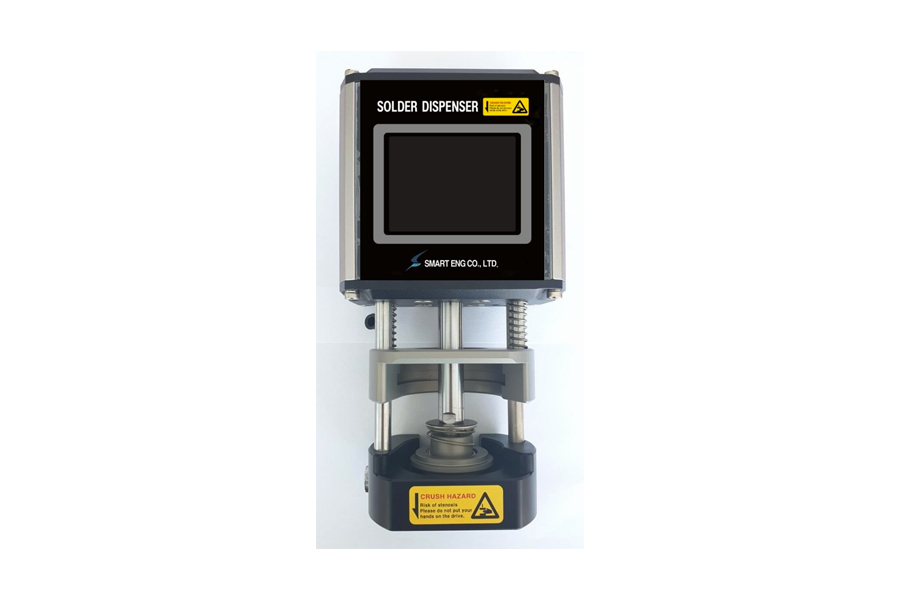

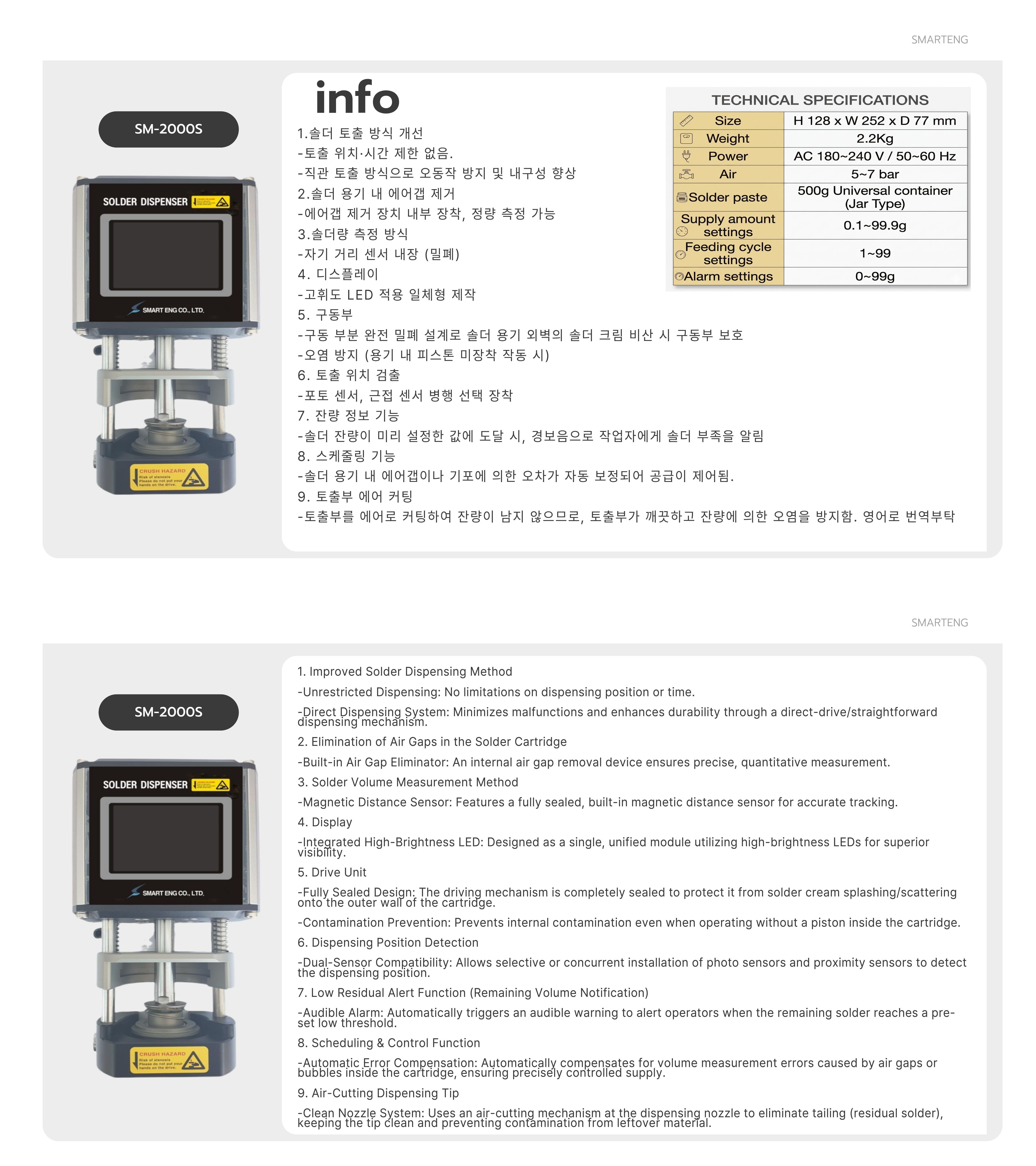

SOLDER DISPENSER (SM-2000S)

[Key Features]

1. Improved Solder Dispensing Method

- Unrestricted Dispensing : No limitations on dispensing position or time

- Qirect pispensjng $ystem : Minimizes malfunctions and enhances durability through a direct-drive/straightforward dispensing· mecha-nism.

2. Elimination of Air Gaps in the Solder Cartridge

- Built-in Air Gap Eliminator : An internal air gap removal device ensures precise, quantitative measurement.

3. Solder Volume Measurement Method

- Magnetic Distance Sensor : Features a fully sealed, built-in magnetic distance sensor for accurate tracking.

4. Display

- Integrated Hight-Brightness LED : Designed as a single, unified module utilizing high-brightness LEDs for superior visibility

5. Drive Unit

- Fully Sealed Design : The driving mechanism is completely sealed to protect it from solder cream splashing/scattering onto the outer wall of the cartridge

6. Dispensing Position Detection

- Dual Sensor Compatibility : Allows selective or concurrent installation of photo sensors and proximity sensors to detect the dispensing position.

7. Low Residual Alert Function (Remaining Volume Notification)

- Audible Alarm : Automatically triggers an audible warning to alert operators when the remaining solder reaches a pre­set low threshold.

8. Scheduling & Control Function

- Automatic Error Compensation : Automatically compensates for volume measurement errors caused by air gaps or bubbles inside the cartridge, ensuring precisely coritrolled supply.

9. Air-Cutting Dispensing Tip

- Clean Nozzle System : Uses an air-cutting mechanism at the dispensing nozzle to eliminate tailing (residual solder), keeping the tip clean and preventing contamination from leftover material.
